Low Noise Linear Power Supply (Double voltage)

Price range: HKD$6,050.00 through HKD$15,240.00

LPS is the most important part in every audio system! No matter what kind of equipment such as Phono, DAC, NAS, Switch Hub, Router, External HDD, etc…

Using LPS will have a significant improvement in sound quality, because most of the adapters is Switch Mode Power supply or cheap iron core cattle will be given to you.

Due to cost constraints, their switch noise and ripples are also very large, which will directly affect the sound quality and background noise. There will also be-affect the stability of the equipment.

Our LPS is designed to improve the above problems. From the academic point of view, after many calculations and experiments to achieve results. I never use HiFi parts blindly, because I use data as a standard, and advanced HiFi parts only serve as the final seasoning.

Discrete Circuit design better than IC design, provide Low noise, fast reaction, More Power and less heat.

Our AC transformer we used are certified by EN61558, and all the completed LPSs have also under full loading and noise testing before they are shipped to ensure that they are of the best quality.

Finally, we also have Bybee Quantum Purifiers as accessories to choose,

In the real test situation, it can provide a more tranquil background reduce tone noise. and the sound is effectively improved, so we highly recommend that you use it!

What is Bybee Quantum Purifiers (Pls click)

LPS 是每個音響器才中最重要的一環!
無論是什麼的器材如Phono, DAC, NAS, Switch Hub, Router, External HDD等等…
使用了LPS 也能有很明顯的音質提升, 因為隨器材付上的火牛多數因成本或技術問題都只會給-隻Switch Mode Power supply 或平價鐵芯牛給你。

因為成本所限,它們的 switch noise 及 ripples也非常大, 這些會直接影響音質及背景噪音的。也會有-定情度上影響器材的穩定性。

我們的LPS就是為了改善以上問題作針對性設計的。從學術角度上經過多次計算及實驗中去取得成果。從不盲目地用HiFi零件,因為我是用數據作標準的, 而高級HiFi零件只作最後調味。

分立電路設計(比IC設計更好),提供低噪聲,快速反應,更大功率和更少熱量。

我們用的火牛是通過EN61558認證的, 所有完成的LPS也經過Full load及噪音檢測才出貨確保到用客手上的是最好的品質。

最後我們還有Bybee Quantum Purifiers作為配件可供選擇, 在真實的測試狀況較我發覺他可以提供一個更寧靜的背景,

毛燥感大為減少, 有效令音色有所提升, 所以我們極之建議大家用!

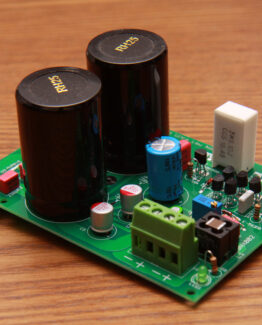

分立式電源板/ Discrete Circuit design

規格/Spec:

  • Ripple and Noise (20Hz to 20Mhz) 0.2mVrms
  • Discrete Circuit design
  • 20000uF Capacitor
  • Custom made Grounded isolation Transformer
  • Short Circuit protection
  • Overheat protection

Real time testing video (Pls click)

5V,6A For Fiber to LAN converters, Switch hubs, Cubox, Raspberry pi etc

12V,6A For Switch hubs, Router, Fiber modem, NAS, External HDD, DAC etc

12V,10A For NAS, PC, External HDD etc

19V,6A ForNotbook, NUC, Router, etc

24V,5A For Rose RS201

Warranty: 2yr

電壓可供訂制請查詢/Please inquire for custom made voltages for order:  Tel94825903 Edison

每組輸出配DC cable一條/All output with DC cables

Product Quantity

Voltage 1

清除
1

Voltage 2

清除
1
分類: 標籤: , , ,

額外資訊

重量 6.3 公斤
尺寸 211 × 257 × 100 公厘
